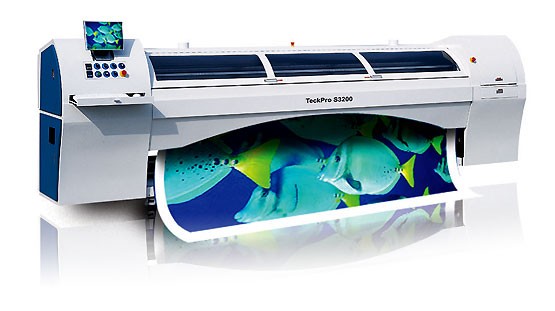

| TeckPro S3200 |
|
| Printhead |
Spectra Nova 256 |
| Color |
4 or 6 colors: 2C / 2M / Y / K or C M Y K Lc
Lm |
| Resolution |
600 dpi |
| Printing modes, passes and speed |
Ultra quality mode, 8 passes: 29 m2/hr (312
ft/2hr)
High quality mode, 6 passes: 38 m2/hr (409
ft2/hr)
Production mode, 4 passes: 54m2/hr (581
ft2/hr) |
| Print mode direction |
Uni and Bi-directional |
| Media |
Type |
Flexible media |
| Size |
Effective printing area: 3.2 m (125.98 inch)
Max roll size:
3.4 m (133.86 inch) |
| Thickness |
≤ 1mm (0.04 inch) |
| Weight |
≤ 106 kg / roll (233.7 Lb/roll) |
| Imaging format file |
PostScriptR3TM, including EPS, TIFF, JPG,
etc. |
| Ink |
Type |
Solvent ink |
| Volume |
2 liter per tank |
| Power |
Power specifications |
AC 230V ± 10%, 50/60Hz, |
| Power consumption |
5.0 KVA |
| Compressed air requirement |
85 PSI (6.0 kg/cm2) to 120 PSI (8.4
kg/cm2) |
| Workstation and RIP |
Windows XP, Teckwin Edition PhotoPrint RIP |
| Interface |
USB 2.0, LAN |
| Environment |
Working temperature |
15 -30 °C (59 - 86°F) |
| Operating humidity |
40-80% RH (Not condensing) |
| Non-operating humidity |
10-80% RH (Not condensing) |
| Acoustic noise level |
≤ 80dB |
| Dust |
Equivalent to normal office level |
| Dimensions（L x W x H） |
5.05 x 0.72 x 1.54 m (16.57′ × 2.36′ × 5.05′) |
| Net weight |
1240 kg (2733 Lb) |
| Package dimensions （L x W x H） |
5.30 x 1.00 x 1.92 m (17.39′ × 3.28′ × 6.30′) |
| Gross weight |
2251 kg (4963 Lb) |
| Min. working area（L x W x H） |
7.05 x 3.74 x 2.8 m (23.13′ × 12.27′ × 9.19′) |
| Safety certificate |
CE |
